1/4 Scale Republic P-47 Thunderbolt

Our Thunderbolt

In 1945, Nicholas Mastrangelo said; "In the creation and conception of the Thunderbolt, her designer exploited every known advantage of the knowledge gained by years of airplane design.

In that same exciting spirit, Equinox Giant Scale R/C made every attempt to maintain the scale aspects of its 1/4 Scale Version of Republic's P-47 Thunderbolt.  Although, based on a specific set of 3 views our kit can be adapted for a few other variants.  Questions? Contact Equinox Giant Scale R/C

3 Fabrications Available

Basic Kit

Advanced Kit

 Custom Construction

Kits are available in three different fabrication stages. Our short kits use conventional "modeling" materials such as fiberglass, balsa and plywood.  The techniques employed are straightforward and easily accomplished by anyone with some previous model building experience.

 ● Fiberglass Fuselage

 ● Fiberglass Cowl & Rudder

 ● Fiberglass Belly Pan

 ● Clear Canopy

 ● Rolled Wing & Stab Plans

 ● Former Templates'

 ● 3 Views & Instructions

 ● All Basic Kit Elements

 ● Laser Cut Wing Kit

 ● Laser Cut Stab Kit

 ● Laser Cut Template Package



Kits can be built to several stages of completion. This includes but is not limited to; Basic ARF to a Turn-Key aircraft ready to fly and /or finished ready for judging at scale competitions.

Contact BDM Models directly for pricing & completion timing.

Contact Equinox R/C

 $950.00 September 2008 Contact BDM Models

We do apologize in advance if it takes a day or two to return emails. While our passion is delivering high quality kits to clients like you, we also have fulltime jobs outside the model industry that involves 50+% travel. If you need to contact us right away, please feel free to call us. (651) 343-3407

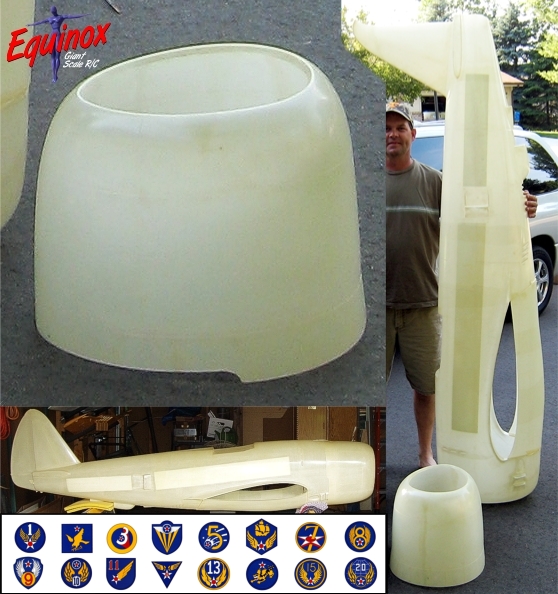

P-47 Kit Closer Look

Click Photos to Enlarge

 Video Highlights

Kit Options: In The Works

P-47 Razorback Conversion Package

Laser Cut Wing & Horizontal Stab Kits

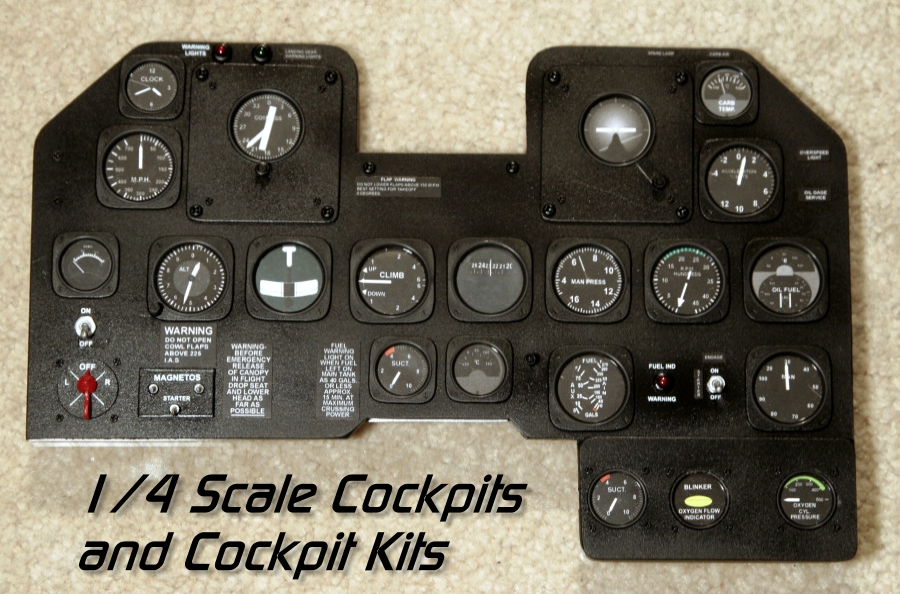

Complete Scale Cockpit "RTI"

Complete Scale Cockpit "Kit"



(Click to Enlarge)





Contact Us

Email Equinox R/C

Ph: 651-343-3407



P-47 Kit Specifications
Wing Span: 122.25" 3.105 m
Length: 109.00" 2.768 m
Wing Area: 2592 sq in 6584 sq cm
Weight Range: 55-65 lbs 25-29.5 kilos
Power Required: 150 cc - 280 cc Boxer



215 cc - 250 cc Radial

Kit Highlights
●

3 Levels of Kit Completion Available to Meet Individual Needs.
●

Vacuum Bagged Epoxy-Glass Fuselage with Scale Detail and Panel Lines. Composite Materials Placed in Key Areas for Strength, Stiffen Structure and Reduce RTF Aircraft Weight.

●

Reinforced Fiberglass Rudder, Belly Pan and Cowl. Cowl Flap Area Has Integrated Kevlar Strips to Easily Add Function Ability.

●

Three Panel Wing Design Based on Kartveli's Original Airfoil design; "Dubbed the Seversky S-3"

●

Clear Canopy, Rolled Wing Plans and Former Templates.
●

Scale 3 Views. (Review PDF)
●

Instructions & Building Tips Sheets

●

Coming Soon! Laser-Cut Wing, Stab & Template Kits

Starr Aircraft's

Retract Systems

Sierra Giant Scale, LLC

Designed an excellent scale set of 1/4 scale retracts for our P47 Thunderbolt.  Not only are they a mechanical piece of artwork but they can be ordered with or without a scale sink bar as shown on the plans.  The tail wheel is also designed to operate and deploy in a scale fashion. To purchase your gear...

Contact Sierra Giant Scale Direct



Dick's  XP-47 Thunderbolt

Follow this link to his build process!
Roy's P-47 Razorback Modification Project
Roy purchased one of our beta kits with the intention to provide feedback and build his favorite version of Republic's P-47. Being a craftsman, he's taken our 3-Views and modified them to accommodate the P-47B Razorback version. From time to time he's kind enough to send us photo's of his progress. Just click on any photo to enlarge them.
